  1. Home/
  2. Prodotti/
  3. Attrezzature

Attrezzature

12 Elementi essenziali per la vostra linea. Aggiornamenti, ricambi e configurazioni custom.

100+ Brevetti
200+ Linee Consegnate
20+ Anni Esperienza
Certificato CE
Suba Machinery
Extruder

Extruder

Suba machinery corrugated pipe extrusion line includes automatic feeding system and hopper with drying function. The developed SJ65, SJ75, SJ90, SJ120, SJ150 extruders use a buffering mixing section and large L/D ratio screws, which has a good plasticization, high output and wide adaptability to raw materials; the feeding section with a spiral buffer design, direct water cooling and automatic temperature control system, which can increase the conveying efficiency at the feeding end. Bimetallic screw and barrel effectively improve the wear resistance and corrosion resistance, service life is increased by 2-3 times; Extruder is equipped with a fine-tuning base to make sure a better connection with the die head; Gearbox adopts vertical structure which achieves compact structure, low noise index, strong carrying capacity and high transmission efficiency; The optimized co-extrusion system of multiple extruders achieves optimal matching production of various specifications. The production of small sized products does not cause waste of the extrusion system, and the production of large sized products has sufficient output.

Pronti a iniziare?

Consulenza e preventivo gratuiti

Consulenza tecnica gratuita
Ingegneri disponibili 24/7
Risposta entro 24h
Qingzhou Suba Machinery Co., Ltd.

Suba Machinery progetta e costruisce linee di estrusione per tubi corrugati a doppia parete — dalla protezione cavi OD40...

+86 187 6563 9190amywang@pipe-corrugator.com
Tianqiaosong, Zona di Sviluppo Economico di Qingzhou, Qingzhou, Shandong, Cina

Linee di produzione

  • SL180
  • SL300
  • SL600
  • SL800
  • SL1000
  • SL1200
  • SL1600

Attrezzature

  • Extruder
  • Double Layer Die Head
  • Corrugator
  • Mould
  • Cooling Tank
  • Cutter
  • Stacker
  • Double Station Coiler
  • Perforator
  • Conical Twin Screw Extruder
  • Cross Die Head
  • Haul-Off Unit

Chi siamo

  • Chi siamo
  • Notizie
  • Contatti

Link rapidi

  • YouTube

© 2026 SUBA Machinery. Tutti i diritti riservati.

2 featuresDettagli
Suba Machinery
Double Layer Die Head

Double Layer Die Head

The blank is extruded from the extruder through the inner and outer die of the double layer pipe die head. Double layer pipe die head is suitable for HDPE and PP materials. Die head is fixed on the die head bracket, and die head replacement is simple and quick. Suba die head short channel design (shorten about 25%), effectively lower down the melt pressure, achieves low temperature low pressure extrusion, production efficiency increases 25%; The low extrusion melt pressure reduces requirement of parts, the material leakage risk at the connection is greatly reduced. The double channel starts from the die head body and reaches the die exit, it achieves multi extruders extrude two layers. The optimized design of double layer pipe die head, the inner and outer wall thickness adjustment is very stable and convenient, which achieves dynamic adjustment, no need to stop extruders, no need to loosen any fastening screws, shorten adjustment time and reduce the material leakage risk.

2 featuresDettagli
Suba Machinery
Corrugator

Corrugator

The innovative corrugator of Suba machinery corrugated pipe extrusion line adopts a horizontal water cooling structure. The vacuum and inflation technology work together to ensure the rapid pipe forming. The center height of different sizes is consistent; Changing sizes only need to replace moulds, no need to adjust the corrugator platform. Patented closed loop water cooling system; Moulds replacement only by loosening or tightening the screws and turning the eccentric disk, there is no any water tubes connected to the moulds, moulds replacement no need to plug and unplug the water tube, 50% time saving for sizes replacement. Corrugator left and right racks are electrically opened and closed freely, which is convenient for equipment inspection and maintenance, and the equipment structure is more stable and easier to operate. Patented mould cooling system, one end of the hose runs continuously and synchronously with the moulds, the other end rotates around the fixed axis. The optimized mould cooling system ensures that the inertia impact of the equipment is minimized, which is especially suitable for high speed production and ensures a longer service life. The length of the moulds cooling water inlet and outlet tube is no longer limited by the specification of moulds, the inlet and outlet tubes are arranged more closely, which avoid equipment damage and the water leakage risk caused by tubes stuck between adjacent moulds.

3 featuresDettagli
Suba Machinery
Mould

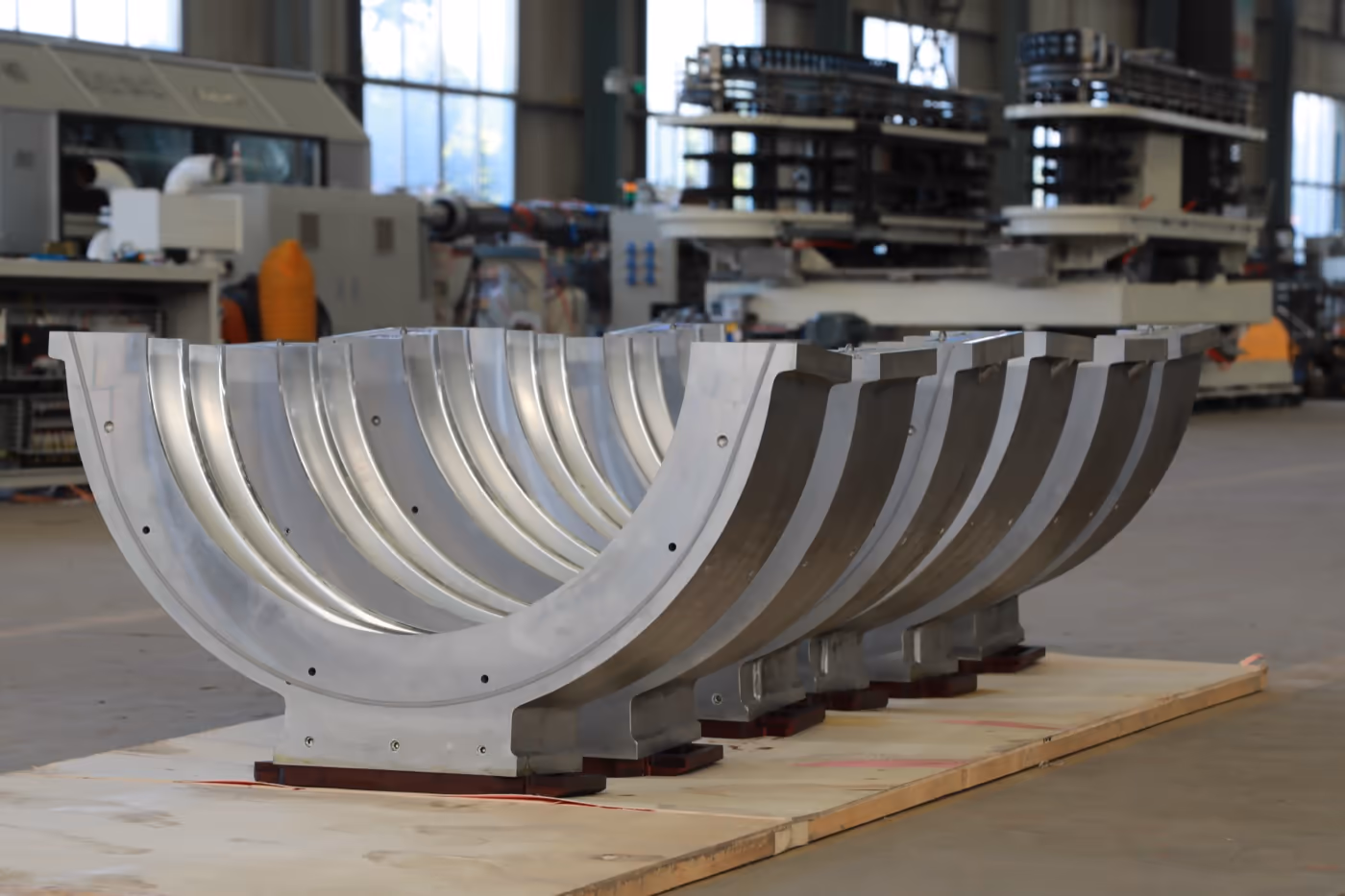

Mould

Suba machinery aluminum alloy moulds are with integrated structure. The corrugated pipe is formed inside the corrugator. During the extrusion process the plasticized material is extruded into the forming channel. The forming of the pipe can be supported and optimized by using vacuum in the moulds. Water cooled moulds guarantee high output and excellent pipe quality. The new designed mould cooling chamber wall and the mould body are made of same material - aluminum alloy, there is no insulation layer between mould chamber wall and mould body. Aluminum alloy has best thermal conductivity which achieves high cooling efficiency and fast forming of pipes. Mould surface has taken harden treatment, the hardened layer has high strength and long service life; Optimized cooling chamber ensures biggest cooling sectional area which makes sure the cooling water has sufficient contact surface with the moulds, cooling efficiency is high; Moulds are customized according to customers requirements about the different stiffness and pipe profile; Online socket and spigot production, easy pipe connection.

5 featuresDettagli
Suba Machinery
Cooling Tank

Cooling Tank

Double wall corrugated pipe extrusion line 304 stainless steel cooling tank secondary cool and shape the pipes. All stainless steel, three-dimensional spray; High-pressure large capacity water outlet equipment at the outlet ensures no moisture remains on the surface of the pipe; The cooling tank runs synchronously with the corrugator; Environmentally friendly: water is totally recycled.

4 featuresDettagli
Suba Machinery
Cutter

Cutter

The high precision cutter independently developed by Suba machinery realizes accurate cutting of straight pipes and flared pipes. Double wall corrugated pipe double blades chipless cutter realizes noise-free and dust-free cutting; Innovative trigger device of cutter guarantees accurate pipes cutting; It adopts turntable bearings, linear guides, and dual Italy imported hydraulic systems to achieve center symmetry and stable operation.

3 featuresDettagli
Suba Machinery
Stacker

Stacker

Double layer corrugated pipe extrusion line stacker is automatically discharged and equipped with a weighing system. Automatic height adjustment; The stacker is equipped with a weighing system to monitor the production status of pipes in real time; The finished pipes can be temporarily stored in the stacker or directly moved into the truck.

3 featuresDettagli
Suba Machinery
Double Station Coiler

Double Station Coiler

Fully automatic coiler and strapping machine achieves single and double wall corrugated pipe automatic coiling and strapping. High speed coiling and strapping; Central adjustment for fast setting; High automatic level, comfortable production; Automatic coiling and strapping.

5 featuresDettagli
Suba Machinery
Perforator

Perforator

Double wall corrugated pipe perforator for making holes on pipes. Perforated corrugated pipes can be used for rain water collection; Number of holes can be customized.

5 featuresDettagli
Suba Machinery
Conical Twin Screw Extruder

Conical Twin Screw Extruder

SJZ80/156 and SJZ92/188 counter-rotating conical twin screw extruders, suitable for the production of PE, PP, PVC and other materials. High output, good plasticization and lower power consumption effectively reduce the pipe production cost.

3 featuresDettagli
Suba Machinery
Cross Die Head

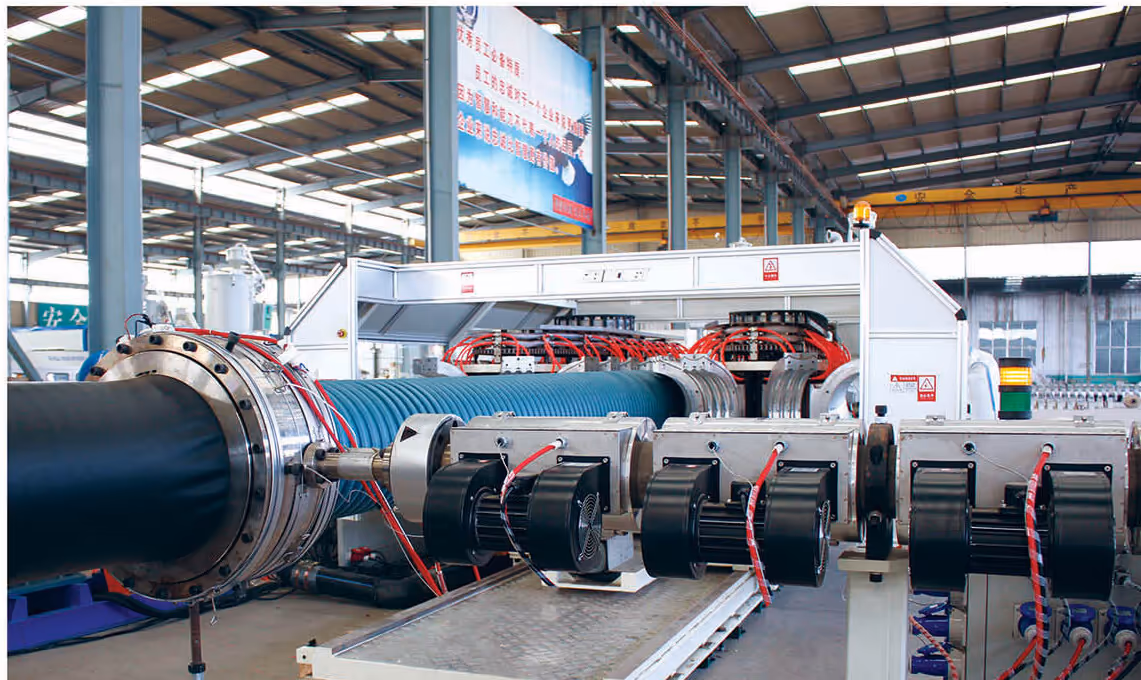

Cross Die Head

Cross die head designed for the production of an additional smooth layer — a third layer around the corrugated pipe, or pipe outside-pipe production. Enables tri-layer pipe manufacturing for enhanced performance and specialty applications.

5 featuresDettagli
Suba Machinery
Haul-Off Unit

Haul-Off Unit

Automated haul-off unit installed directly upstream of the cut-off saw to provide stable, continuous take-off of the formed pipe. Engineered for the strict synchronization demands of high-speed extrusion lines, it minimizes scrap during start-up and format changeovers and lowers total cost of ownership (TCO) for a fast return on investment (ROI).

5 featuresDettagli
