Complete solutions for double wall corrugated pipe production. From small diameter cable protection to large infrastructure drainage systems.

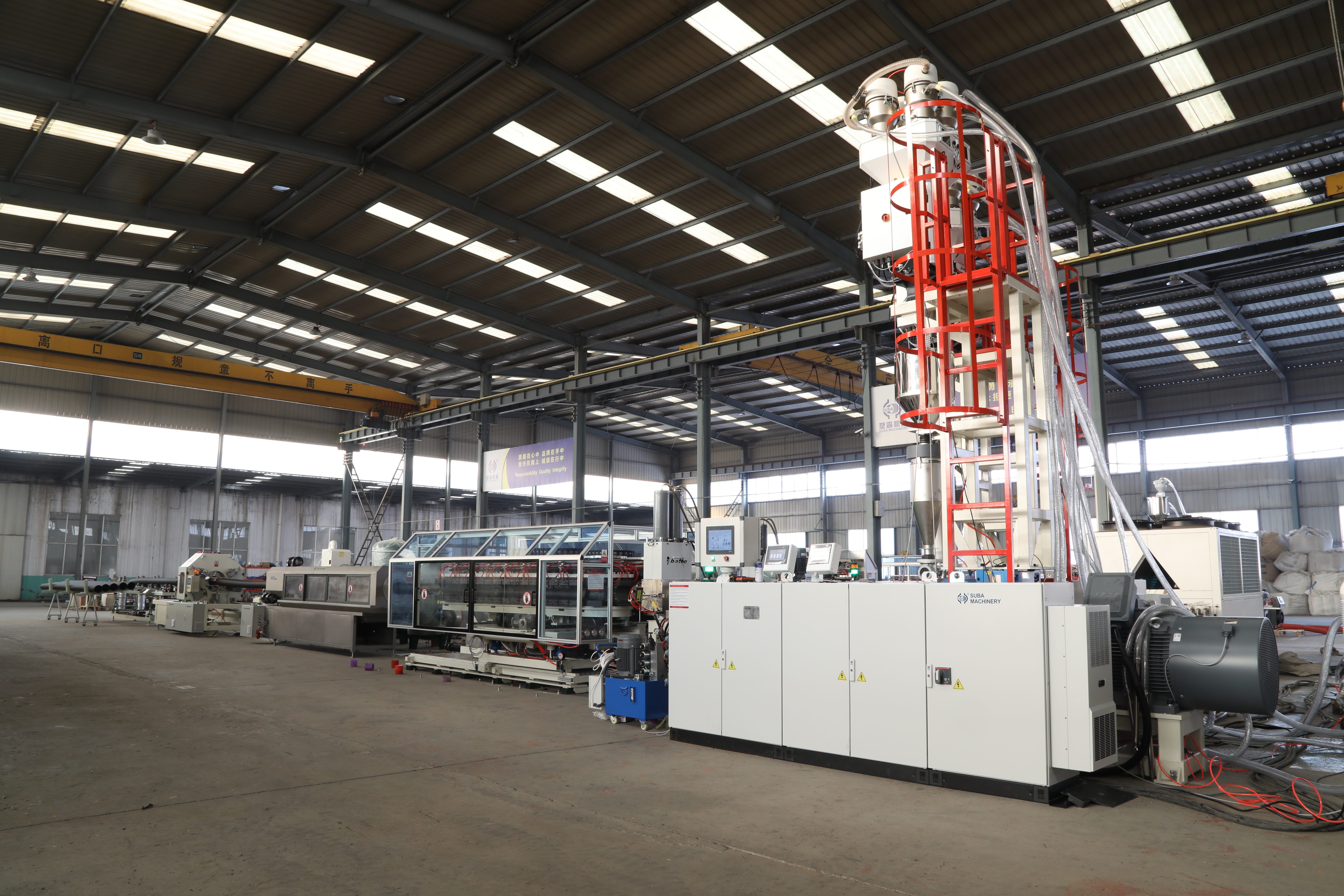

Full extrusion line systems for HDPE/PP double wall corrugated pipes. From OD40mm cable protection to OD2000mm drainage infrastructure.
Browse All Lines
ID32–OD200mm double wall corrugated pipes. For cable protection, water collection, ventilation system, bridge and drainage.
ID100–OD630mm double wall corrugated pipes. For drainage and sewage.
ID600–OD1400mm double wall corrugated pipes. For drainage, sewage and storm water.
Extruders, die heads, corrugators, moulds, cooling tanks, cutters, stackers — every component for your production line.
Browse All Components
SJ60, SJ75, SJ90, SJ120, SJ150 single screw extruders with special screw design, suitable for PE, PP and other materials. Using buffering mixing section and large L/D ratio 36:1 screws for good plasticization, high output and wide adaptability to raw materials. Bimetallic screw and barrel effectively improve wear resistance and corrosion resistance, achieving longer service life.
View Line
Material is extruded from the extruder through the inner and outer dies of the double layer pipe die head. Suba die head short channel design (reduced by 25%) effectively lowers melt pressure, achieving low temperature, low pressure extrusion — production efficiency 25% higher than conventional die heads. Dynamic inner and outer wall thickness adjustment without stopping extruders. Suitable for HDPE and PP materials. Die head fixed on bracket for simple, quick size changes.
View Line
The corrugator adopts a closed loop pressure water cooling system for high forming efficiency. Patented design — mould replacement requires no water tube disassembly. All mould sizes share the same center height; no platform adjustment needed when changing moulds. Left and right frames open and close electrically for easy maintenance. Equipped with UPS and remote control system.
View LineEvery unit of the production line is engineered for precision, durability, and maximum output.
Optimized hydraulic design increases output by 25%, achieving low-temperature and low-pressure extrusion. Edge Flow design keeps inner layer wall thickness and deviation adjustment stable and precise.
Buffering mixing section and large L/D ratio 36:1 screws for good plasticization, high output, and wide adaptability to raw materials. Bimetallic screw and barrel for improved wear resistance.
Patented closed loop pressure water cooling. No platform design — all mould sizes share the same center height, no corrugator adjustment when changing moulds. Schneider PCC control system.
High-quality aluminium alloy moulds. Optimized cooling chamber with maximum cooling cross-section area. Water temperature control system ensures excellent pipe quality.
Chipless cutter — precise, noiseless and dust-free cutting. Innovative trigger mechanism with turntable bearings, linear guide rails, and dual Italian hydraulic systems.
Automatic pipe turn-over and stacking reduces labor requirements. Adjustable counting and stacking configuration adapts to different pipe diameters and lengths.
Corrugated pipes produced by Suba machinery serve critical industries worldwide.
PP, PVC, PE single and multi-layer pipes for protection of electrical cables and PEX or multi-layer pipes for hot and cold water in domestic heating and plumbing systems.
PE, PP and PVC double-wall pipes for sewage and rainwater drainage systems, or PE double-wall pipes protecting cables in underground installations, internet and telecom networks.
PE, PP and EVA tubes used in respirators and anesthesia systems.
PP, PE and PA single and multi-layer pipes for wiring and protection of electrical cables (wire harness) or for the flow of fuel and other fluids.
PP, PE, EVA water inlet and outlet hoses for washing machines, dishwashers, air-conditioners and vacuum cleaners.
Pipes of various diameters and thermoplastic materials for water purification, ventilation, sanitary and swimming pool hoses, and district heating lines.
Select up to 4 models to compare specifications and find the right production line for your needs.
Selected: 3/4 models
| Specification | SL-180 | SL-600 | SL-1200 |
|---|---|---|---|
| Pipe Diameter Range | ID32–OD200 | ID100–OD630 | ID600–OD1400 |
| Materials | HDPE / PP / PVC | HDPE / PP / PVC | HDPE / PP / PVC |
| Category | Small | Medium | Large |
| Water Cooling | |||
| PCC Control | |||
| Quick Mold Change | |||
| Electric Adjustment | |||
| Coiler Included | Optional | ||
| Perforator | |||
| Haul-Off | |||
| Multiple Chain Lengths | |||
| Applications | drainage, sewage | drainage, sewage | drainage, sewage |
| View Details | View Details | View Details |
ID32–OD200
ID100–OD630
ID600–OD1400
Need help choosing the right production line?
Get Expert ConsultationThe complete picture before you buy a corrugated pipe extrusion line.
HDPE and PP double-wall corrugated pipe for cable protection, drainage, sewage, and infrastructure. Full extrusion line: extruder, corrugator, haul-off, cutting unit, and coiler.
Closed-loop water cooling system enables sustained high output without thermal drift. Patented corrugator design produces consistent wall thickness and ring stiffness from run one.
Every line ships as a complete, tested system. Suba engineers install and commission on-site, train your operators, and stay reachable via remote PCC diagnostics after handover.
Production lines exported to 20+ countries across Asia, Europe, South America, and Africa — including Russia, UK, India, Malaysia, Indonesia, Vietnam, Argentina, Peru, and Kenya.
Comprehensive support for our customers worldwide
Qingzhou Suba Machinery Co., Ltd. offers 24-hour online service and prompt problem-solving solutions.
Our engineering team travels to your facility worldwide to oversee installation, commissioning, and comprehensive operator training.
Technical guidance on usage, maintenance, and optimization. We ensure supply of spare parts for all equipment.
PCC remote control system enables our engineers to diagnose and solve problems remotely, minimizing downtime.
We actively collect and respond to customer feedback, continuously improving our products and service.
Our professional engineers travel to your facility anywhere in the world for installation, training, and ongoing technical support.
